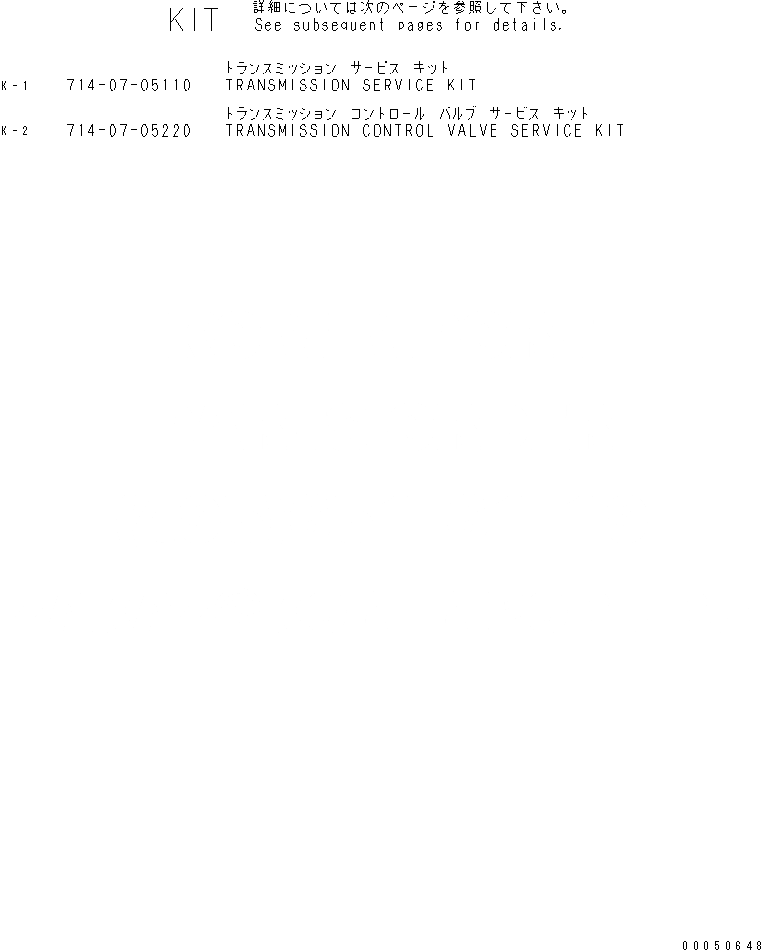

Запчасти Komatsu WA450-6 РЕМ. КОМПЛЕКТЫ (С БЛОКИР.-UP) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

1

714-07-05110

SERVICE KIT

SN: 66001-UP

1шт.

1

02896-61009

O-RING,(F4350-61A0 -38 )

SN: 66001-UP

1шт.

1

02896-61009

O-RING,(F4350-61A0 -41 )

SN: 66001-UP

1шт.

1

02896-61018

O-RING,(F4350-57A0 -12 )

SN: 66001-UP

1шт.

1

02896-61018

O-RING,(F4350-61A0 -8 )

SN: 66001-UP

2шт.

1

02896-61018

O-RING,(F4350-61A0 -22 )

SN: 66001-UP

1шт.

1

07000-A6240

O-RING,(F4350-55A0 -20 )

SN: 66001-UP

1шт.

1

07000-A6285

O-RING,(F4350-55A0 -22 )

SN: 66001-UP

1шт.

1

07000-72012

O-RING,(F4350-60A0 -11 )

SN: 66001-UP

2шт.

1

07000-72015

O-RING,(F4350-60A0 -10 )

SN: 66001-UP

24шт.

1

07000-72065

O-RING,(F4350-62A1 -13 )

SN: 66001-UP

1шт.

1

07000-73026

O-RING,(F4350-60A0 -13 )

SN: 66001-UP

1шт.

1

07000-73028

O-RING,(F4350-60A0 -9 )

SN: 66001-UP

2шт.

1

07000-73035

O-RING,(F4350-62A1 -20 )

SN: 66001-UP

1шт.

1

07000-73040

O-RING,(F4350-57A0 -16 )

SN: 66001-UP

1шт.

1

07000-73045

O-RING,(F4350-60A0 -12 )

SN: 66001-UP

1шт.

1

07000-75065

O-RING,(F4350-55A0 -33 )

SN: 66001-UP

1шт.

1

07000-75085

O-RING,(F4350-61A0 -2 )

SN: 66001-UP

1шт.

1

07000-75130

O-RING,(F4350-51A0 -20 )

SN: 66001-UP

1шт.

1

07000-75160

O-RING,(F4350-55A0 -10 )

SN: 66001-UP

1шт.

1

07000-75295

O-RING,(F4350-51A0 -14 )

SN: 66001-UP

1шт.

1

07000-75300

O-RING,(F4350-55A0 -14 )

SN: 66001-UP

1шт.

1

07001-06245

RING,(F4350-55A0 -21 )

SN: 66001-UP

1шт.

1

07001-06290

RING,(F4350-55A0 -23 )

SN: 66001-UP

1шт.

1

07002-61023

O-RING,(F4350-61A0 -5 )

SN: 66001-UP

1шт.

1

07002-61023

O-RING,(F4350-62A1 -2 )

SN: 66001-UP

1шт.

1

07002-61023

O-RING,(F4350-62A1 -22 )

SN: 66001-UP

1шт.

1

07002-61423

O-RING,(F4350-61A0 -37 )

SN: 66001-UP

1шт.

1

07002-61423

O-RING,(F4350-61A0 -40 )

SN: 66001-UP

1шт.

1

07002-62034

O-RING,(F4350-51A0 -5 )

SN: 66001-UP

2шт.

1

07002-62434

O-RING,(F4350-57A0 -13 )

SN: 66001-UP

1шт.

1

07002-62434

O-RING,(F4350-61A0 -23 )

SN: 66001-UP

1шт.

1

07002-62434

O-RING,(F4350-62A1 -8 )

SN: 66001-UP

1шт.

1

07002-63334

O-RING,(F4350-61A0 -7 )

SN: 66001-UP

2шт.

1

07005-01012

GASKET,(F4350-61A0 -32 )

SN: 66001-UP

6шт.

1

07012-C0105

SEAL,(F4350-55A0 -37 )

SN: 66001-UP

1шт.

1

07012-50095

SEAL,(F4350-55A0 -8 )

SN: 66001-UP

1шт.

1

419-15-12122

RING,(F4350-53A0 -20 )

SN: 66001-UP

3шт.

1

419-15-12122

RING,(F4350-54A0 -19 )

SN: 66001-UP

3шт.

1

419-15-18131

LIQUID GASKET

SN: 66001-UP

1шт.

1

425-15-28710

SEAL,(F4350-55A0 -9 )

SN: 66001-UP

1шт.

1

714-07-00110

SHIM ASS'Y,(F4350-51A0 -19 )

SN: 66001-UP

1шт.

1

714-07-00200

SHIM ASS'Y,(F4350-55A0 -30 )

SN: 66001-UP

1шт.

1

714-07-18541

SEAL,(F4350-55A0 -38 )

SN: 66001-UP

1шт.

1

714-07-19320

RING,(F4350-53A0 -9 )

SN: 66001-UP

2шт.

1

714-07-19320

RING,(F4350-54A0 -9 )

SN: 66001-UP

2шт.

1

714-11-19230

RING,(F4350-52A1 -9 )

SN: 66001-UP

2шт.

1

714-12-39210

RING,(F4350-52A1 -19 )

SN: 66001-UP

5шт.

1

714-16-19210

RING,(F4350-52A1 -10 )

SN: 66001-UP

2шт.

1

714-16-19220

RING,(F4350-53A0 -8 )

SN: 66001-UP

2шт.

1

714-16-19220

RING,(F4350-54A0 -8 )

SN: 66001-UP

2шт.

1

714-21-19810

RING,(F4350-52A1 -20 )

SN: 66001-UP

2шт.

2

714-07-05220

SERVICE KIT,TRANSMISSION CNTOROL VALVE

SN: 66001-UP

1шт.

2

07000-02060

O-RING,(F4350-58A1 -33- )

SN: 66001-UP

1шт.

2

07000-71007

O-RING,(F4350-58A1 -20 )

SN: 66001-UP

7шт.

2

07000-72012

O-RING,(F4350-58A1 -30 )

SN: 66001-UP

3шт.

2

07000-72015

O-RING,(F4350-58A1 -19 )

SN: 66001-UP

28шт.

2

07000-73022

O-RING,(F4350-58A1 -36 )

SN: 66001-UP

2шт.

2

07000-73030

O-RING,(F4350-57A0 -10 )

SN: 66001-UP

2шт.

2

07000-73030

O-RING,(F4350-59A0 -24 )

SN: 66001-UP

5шт.

2

07002-61023

O-RING,(F4350-57A0 -3 )

SN: 66001-UP

2шт.

2

07002-61023

O-RING,(F4350-58A1 -4 )

SN: 66001-UP

3шт.

2

07002-61023

O-RING,(F4350-58A1 -13 )

SN: 66001-UP

1шт.

2

07002-61023

O-RING,(F4350-58A1 -18 )

SN: 66001-UP

1шт.

2

07002-61023

O-RING,(F4350-58A1 -29 )

SN: 66001-UP

3шт.

2

07002-61023

O-RING,(F4350-59A0 -3 )

SN: 66001-UP

2шт.

2

07002-61423

O-RING,(F4350-58A1 -6 )

SN: 66001-UP

15шт.

2

07002-61623

O-RING,(F4350-58A1 -8 )

SN: 66001-UP

2шт.

2

07002-61823

O-RING,(F4350-58A1 -35 )

SN: 66001-UP

1шт.

2

07002-62034

O-RING,(F4350-58A1 -25 )

SN: 66001-UP

1шт.

2

07002-63034

O-RING,(F4350-59A0 -5 )

SN: 66001-UP

1шт.

2

07002-63034

O-RING,(F4350-59A0 -14 )

SN: 66001-UP

1шт.

2

07002-63034

O-RING,(F4350-59A0 -22 )

SN: 66001-UP

2шт.
