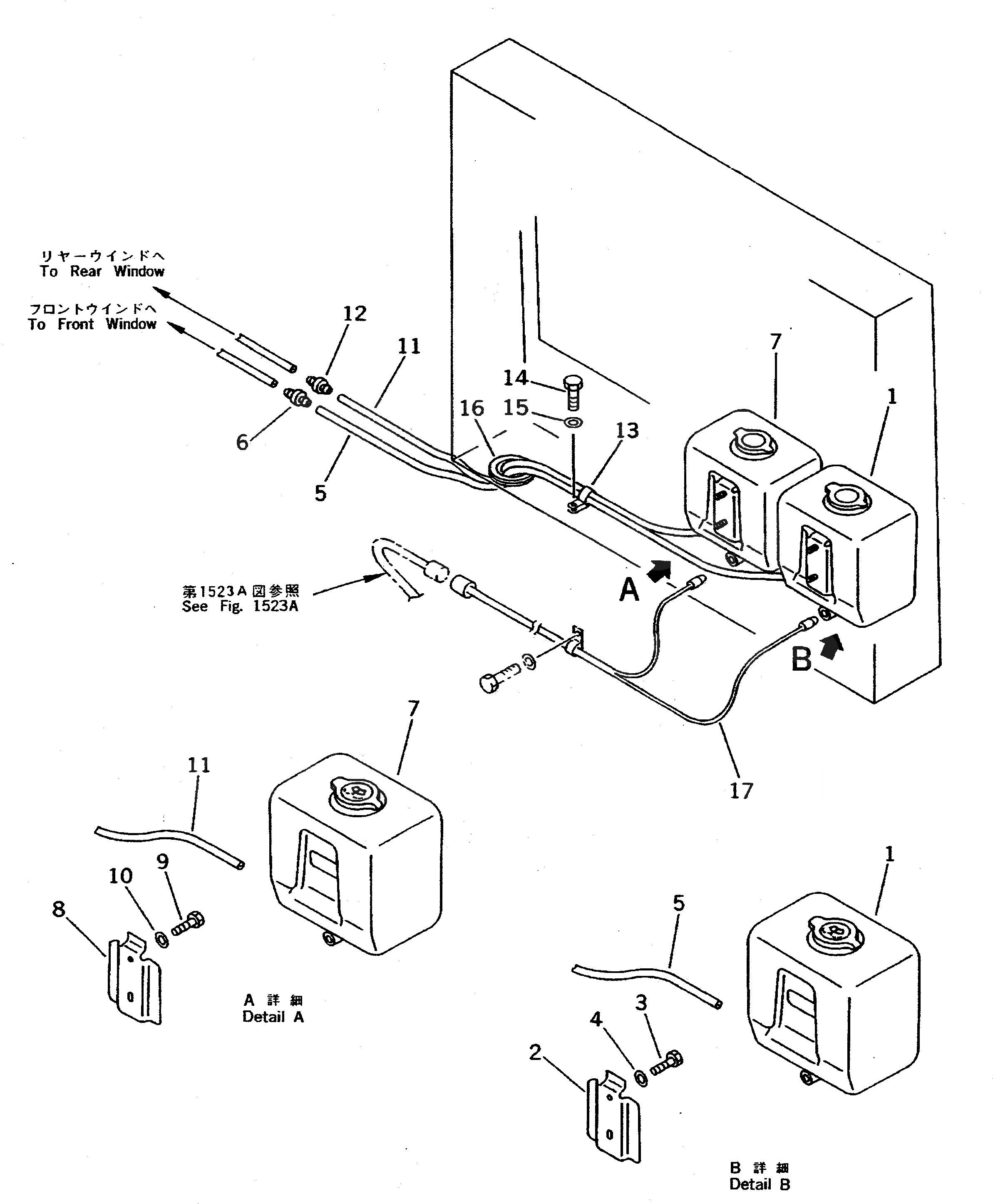

Запчасти Komatsu WA500-1 ОМЫВАТЕЛЬ СТЕКЛА(№-) РАМА И ЧАСТИ КОРПУСА

1

421-07-15160

TANK,FRONT

SN: 10001-UP

1шт.

2

421-07-15170

BRACKET,(FOR FRONT WASHER)

SN: 10001-UP

1шт.

3

01010-80612

BOLT,(FOR FRONT WASHER)

SN: 10001-UP

2шт.

4

01643-30623

WASHER,(FOR FRONT WASHER)

SN: 10001-UP

2шт.

5

426-07-15110

HOSE,(FOR FRONT WASHER)

SN: 20001-UP

1шт.

6

421-07-15110

JOINT,(FOR FRONT WASHER)

SN: 10001-UP

1шт.

7

421-07-15160

TANK,REAR

SN: 10001-UP

1шт.

8

421-07-15170

BRACKET,(FOR REAR WASHER)

SN: 10001-UP

1шт.

9

01010-80612

BOLT,(FOR REAR WASHER)

SN: 10001-UP

2шт.

10

01643-30623

WASHER,(FOR REAR WASHER)

SN: 10001-UP

2шт.

11

426-07-15110

HOSE,(FOR REAR WASHER)

SN: 20001-UP

1шт.

12

421-07-15110

JOINT,(FOR REAR WASHER)

SN: 10001-UP

1шт.

13

08036-01414

CLIP

SN: 20001-UP

1шт.

14

01010-81020

BOLT

SN: 10001-UP

1шт.

15

01643-31032

WASHER

SN: 10001-UP

1шт.

16

08032-03614

GROMMET

SN: 10001-UP

1шт.

17

428-06-12360

WIRE ASS'Y

SN: .-UP

1шт.

|17

0

WIRE ASS'Y

SN: 20001-.

1шт.
