|$1

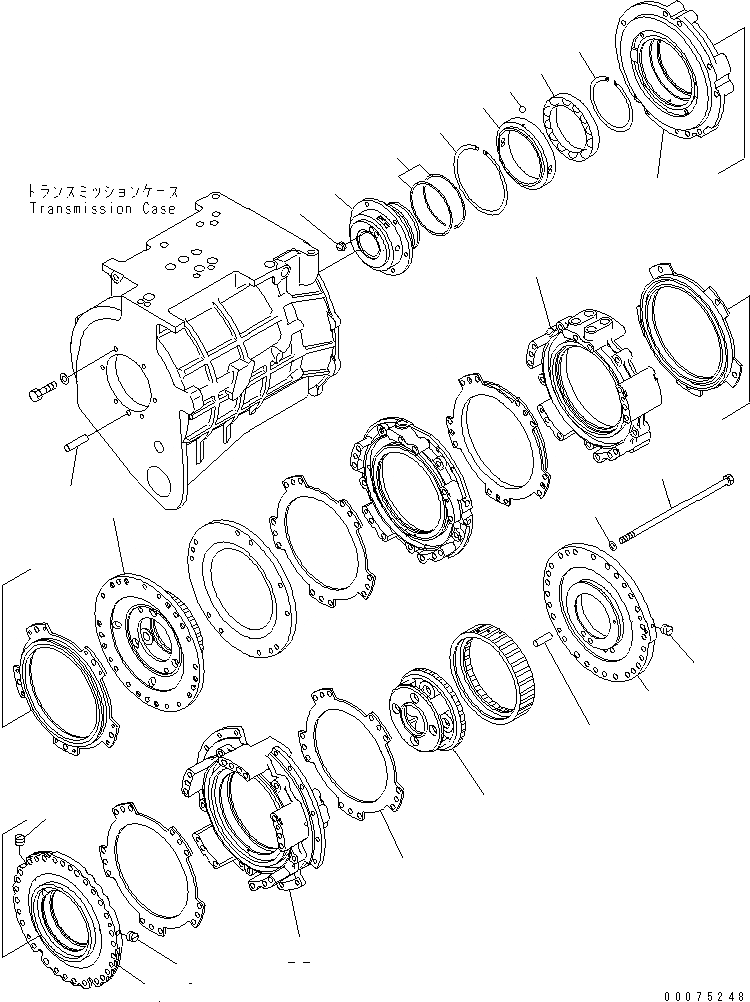

TRANSMISSION ASS'Y,(SEE FIG. F4320-51A0)
SN: A71001-UP
-1шт.
|$2
425-15-02110
CAGE ASS'Y
SN: A71001-UP
1шт.
1
0
CAGE
SN: A71001-UP
1шт.
2
175-15-11230
PLUG
SN: A71001-UP
1шт.
3
04020-01228
PIN,DOWEL
SN: A71001-UP
2шт.
|$6
425-15-02120
CAGE ASS'Y
SN: A71001-UP
1шт.
4
0
CAGE
SN: A71001-UP
1шт.
5
568-15-11380
PLUG
SN: A71001-UP
2шт.
6
421-15-11250
BOLT
SN: A71001-UP
12шт.
7
145-14-11570
WASHER
SN: A71001-UP
12шт.
|$11
421-15-00130
CAGE ASS'Y
SN: A71001-UP
1шт.
8
0
CAGE
SN: A71001-UP
1шт.
9
234-15-12790
SCREW
SN: A71001-UP
2шт.
10
175-15-31210
PIN
SN: A71001-UP
1шт.
11
424-15-19210
RING,SEAL
SN: A71001-UP
2шт.
12
421-15-12390
BUSHING
SN: A71001-UP
1шт.
13
04071-00200
RING,SNAP
SN: A71001-UP
1шт.
14
04260-00635
BALL
SN: A71001-UP
1шт.
15
06000-06928
BEARING,BALL
SN: A71001-UP
1шт.
16
04070-00140
RING,SNAP
SN: A71001-UP
1шт.
17
CARRIER,(SEE FIG. F4320-58A0)
SN: A71001-UP
-1шт.
18
HOUSING,(SEE FIG. F4320-53A0)
SN: A71001-UP
-1шт.
19
HOUSING,(SEE FIG. F4320-52A0)
SN: A71001-UP
-1шт.
20
CARRIER,(SEE FIG. F4320-56A0)
SN: A71001-UP
-1шт.
21
PLATE,(SEE FIG. F4320-55A0A)
SN: A71001-UP
-1шт.
22
HOUSING,(SEE FIG. F4320-51A0)
SN: A71001-UP
-1шт.
