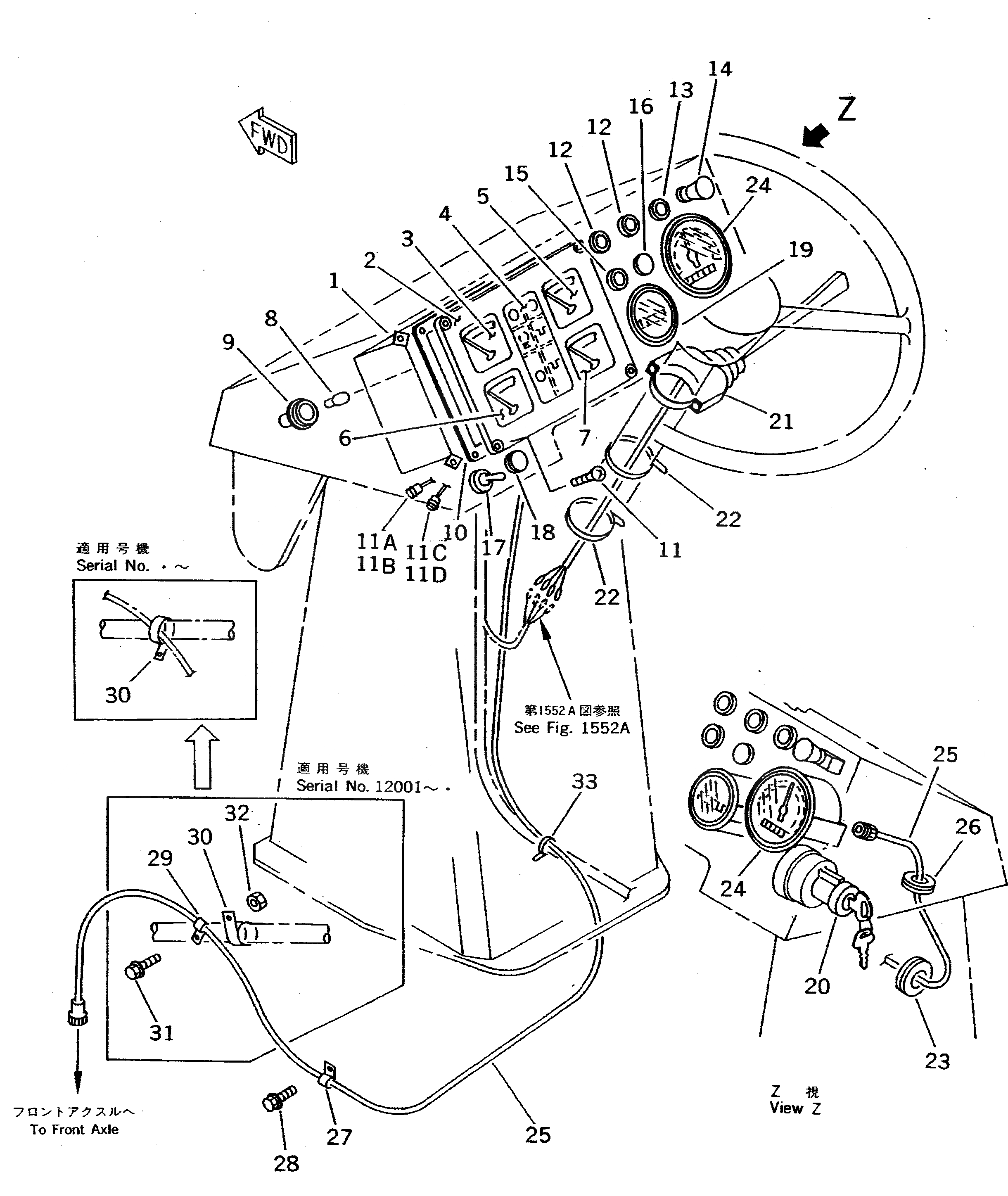

1
417-06-15112
GAUGE CLUSTER
SN: 12001-UP
1шт.
2
417-06-15310
PANEL
SN: 10001-UP
1шт.
3
417-06-15330
GAUGE,WATER TEMPERATURE
SN: 10001-UP
1шт.
4
417-06-15390
PLATE, CAUTION
SN: 10001-UP
1шт.
5
417-06-15350
GAUGE,FUEL LEVEL
SN: 10001-UP
1шт.
6
417-06-15340
GAUGE,OIL TEMPERATURE
SN: 10001-UP
1шт.
7
417-06-15360
GAUGE,VOLT
SN: 10001-UP
1шт.
8
08102-02403
BULB, 3W
SN: 10001-UP
8шт.
9
417-06-15380
SOCKET
SN: 10001-UP
8шт.
10
417-06-15320
GASKET,PANEL
SN: 10001-UP
1шт.
11
417-06-15510
SCREW
SN: 12001-UP
4шт.
11A
566-06-14510
CONNECTOR
SN: 12001-UP
1шт.
11B
566-06-14520
TERMINAL
SN: 12001-UP
6шт.
11C
566-06-14530
CONNECTOR
SN: 12001-UP
1шт.
11D
566-06-14540
TERMINAL
SN: 12001-UP
6шт.
12
566-06-17150
LAMP,TURN SIGNAL PILOT
SN: 10001-UP
2шт.
12
08111-02430
BULB, 3W
SN: 10001-UP
1шт.
12
08021-00400
CONNECTOR
SN: 10001-UP
1шт.
13
600-815-1361
SIGNAL,HEATER
SN: 10001-UP
1шт.
14
08061-60010
SWITCH,LAMP
SN: 10001-UP
1шт.
15
566-06-17140
LAMP,HIGH BEAM PILOT
SN: 10001-UP
1шт.
15
08111-02430
BULB, 3W
SN: 10001-UP
1шт.
15
08021-00400
CONNECTOR
SN: 10001-UP
1шт.
16
09415-01610
CAP
SN: 10001-UP
1шт.
17
417-06-11650
SWITCH,PARKING LAMP AND T/M CUT OFF
SN: 12001-UP
1шт.
17
417-06-11630
CAP
SN: 12001-UP
1шт.
18
09415-00706
CAP
SN: 12001-UP
1шт.
19
08687-22403
METER,SERVICE
SN: 12001-UP
1шт.
20
08086-10000
SWITCH,STARTING
SN: 10001-UP
1шт.
21
417-06-11260
SWITCH,TURN SIGNAL
SN: 10001-UP
1шт.
22
08034-00823
BAND
SN: 10318-UP
2шт.
23
08037-03614
GROMMET,(WITH SPEEDOMETER)
SN: 12001-UP
1шт.
23
09415-03614
CAP,(WITHOUT SPEEDOMETER)
SN: 12001-UP
1шт.
24
415-06-15111
METER,SPEED (KM/H DISPLAY)
SN: 10001-UP
1шт.
24
415-V41-1110
METER,SPEED (MPH DISPLAY)
SN: 10001-UP
1шт.
24
08111-02430
BULB, 3W
SN: 10001-UP
1шт.
25
08603-43030
CABLE,(WITH SPEEDOMETER)
SN: 12001-UP
1шт.
26
08037-02512
GROMMET,(WITH SPEEDOMETER)
SN: 12001-UP
1шт.
27
424-06-12710
CLIP,(WITH SPEEDOMETER)
SN: 10001-UP
1шт.
28
01435-00812
BOLT,(WITH SPEEDOMETER)
SN: 12001-UP
1шт.
29
424-06-12710
CLIP,(WITH SPEEDOMETER)
SN: 10001-.
1шт.
30
08034-20519
BAND,(WITH SPEEDOMETER)
SN: ..-UP
1шт.
30
0
BAND,(WITH SPEEDOMETER)
SN: .-..
1шт.
30
08035-03010
CLIP,(WITH SPEEDOMETER)
SN: 12001-.
1шт.
31
01435-01016
BOLT,(WITH SPEEDOMETER)
SN: 12001-.
1шт.
32
01584-01008
NUT,(WITH SPEEDOMETER)
SN: 12001-.
1шт.
33
08034-20519
BAND,(WITH SPEEDOMETER)
SN: .-UP
1шт.
33
0
BAND,(WITH SPEEDOMETER)
SN: 12001-.
1шт.
