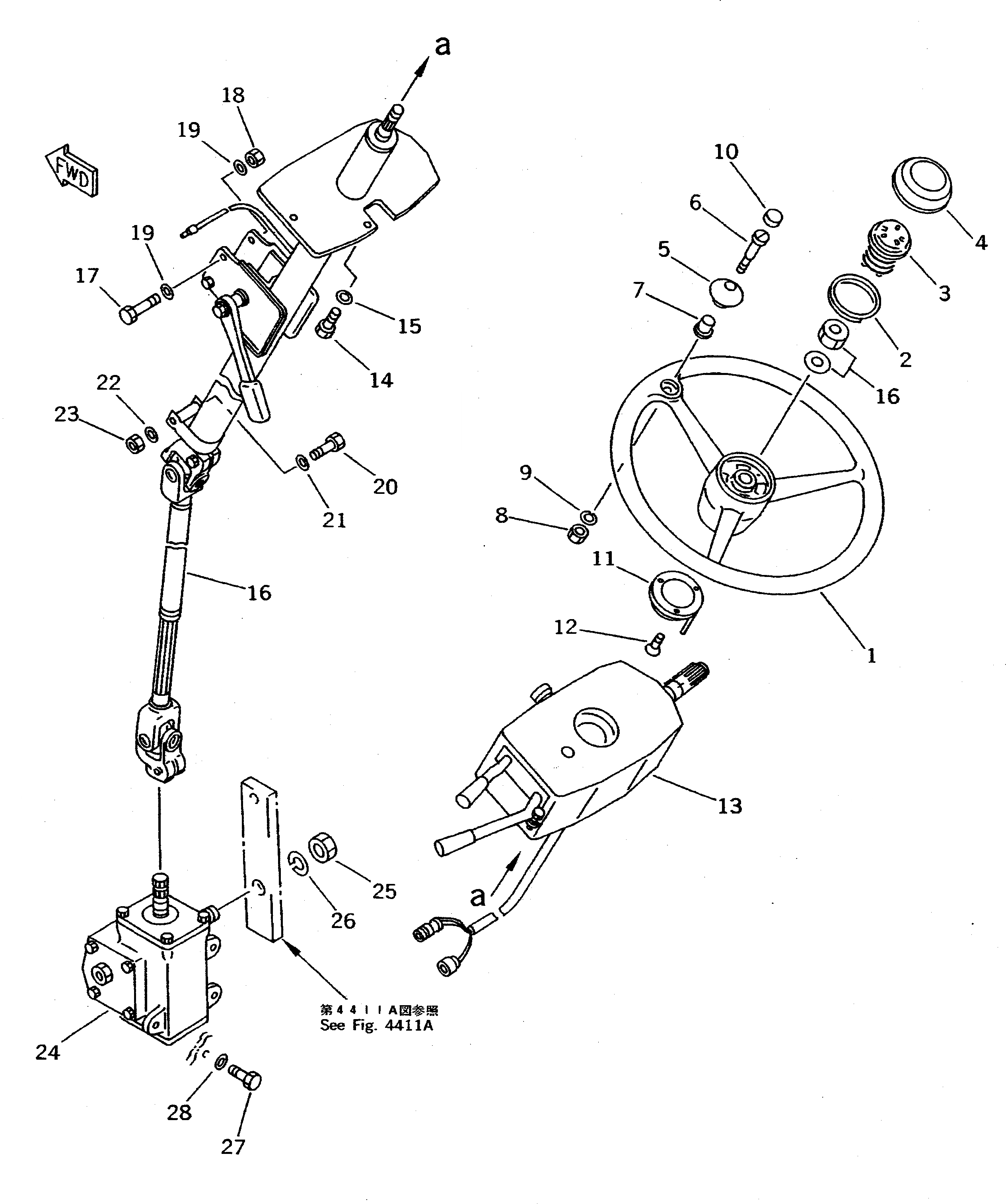

|$0
421-40-12100
STEERING WHEEL ASS'Y
SN: 10001-UP
1шт.
|$1
421-40-12111
WHEEL ASS'Y,STEERING
SN: 10001-UP
1шт.
1
421-40-12121
WHEEL
SN: 10001-UP
1шт.
2
362-43-15140
SPRING,LOCK
SN: 10001-UP
1шт.
3
421-40-12160
CAP,CONTACT
SN: 10001-UP
1шт.
4
362-43-15120
BUTTON,HORN
SN: 10001-UP
1шт.
5
362-43-15160
GRIP
SN: 10001-UP
1шт.
6
362-43-15180
SHAFT
SN: 10001-UP
1шт.
7
362-43-15190
BUSHING
SN: 10001-UP
1шт.
8
362-43-15210
NUT
SN: 10001-UP
1шт.
9
362-43-15220
WASHER,SPRING
SN: 10001-UP
1шт.
10
362-43-15170
CAP
SN: 10001-UP
1шт.
11
421-40-12151
PIN,CANCEL
SN: 10001-UP
1шт.
12
01235-40616
SCREW
SN: 10001-UP
3шт.
13
421-06-11605
SWITCH ASS'Y,TRANSMISSION CONTROL
SN: 10001-UP
1шт.
14
01010-80616
BOLT
SN: 10001-UP
3шт.
15
01643-30623
WASHER
SN: 10001-UP
3шт.
16
421-40-12314
STEERING COLUMN A.,(SEE FIG,4451)
SN: 10001-UP
1шт.
17
01011-81010
BOLT
SN: 10001-UP
2шт.
18
01580-11008
NUT
SN: 10001-UP
2шт.
19
01643-31032
WASHER
SN: 10001-UP
4шт.
20
421-40-12912
BOLT
SN: 10001-UP
1шт.
21
01643-31232
WASHER
SN: 10001-UP
1шт.
22
01643-30823
WASHER
SN: 10001-UP
1шт.
23
01580-10806
NUT
SN: 10001-UP
1шт.
24
416-40-12300
STEERING GEAR ASS'Y,(SEE FIG,4461)
SN: 10001-UP
1шт.
25
01583-12213
NUT
SN: 10001-UP
1шт.
26
01602-22268
WASHER,SPRING
SN: 10001-UP
1шт.
27
01050-81260
BOLT
SN: 10001-UP
3шт.
28
01643-31232
WASHER
SN: 10001-UP
3шт.
29
418-40-12122
SHAFT,(WITH JOY STICK STEERING)
SN: 10001-UP
1шт.
30
418-40-12130
PACKING,(WITH JOY STICK STEERING)
SN: 10001-UP
1шт.
31
418-54-12521
PLATE,(WITH JOY STICK STEERING)
SN: 10001-UP
2шт.
32
427-S33-2330
PLATE,(WITH JOY STICK STEERING)
SN: 10001-UP
2шт.
33
02010-70632
BOLT,(WITH JOY STICK STEERING)
SN: 10001-UP
4шт.
34
01643-31032
WASHER,(WITH JOY STICK STEERING)
SN: 10001-UP
4шт.
35
427-S33-2470
PLATE,(WITH JOY STICK STEERING)
SN: 10001-UP
1шт.
36
419-43-17930
CUSHION,(WITH JOY STICK STEERING)
SN: 10001-UP
8шт.
37
421-62-18560
SPACER,(WITH JOY STICK STEERING)
SN: 10001-UP
4шт.
38
419-43-17920
WASHER,(WITH JOY STICK STEERING)
SN: 10001-UP
8шт.
39
01435-01255
BOLT,(WITH JOY STICK STEERING)
SN: 10001-UP
4шт.
40
427-S33-2820
STEERING VALVE ASS'Y,(WITH JOY STICK STEERING)
SN: 10001-UP
1шт.
