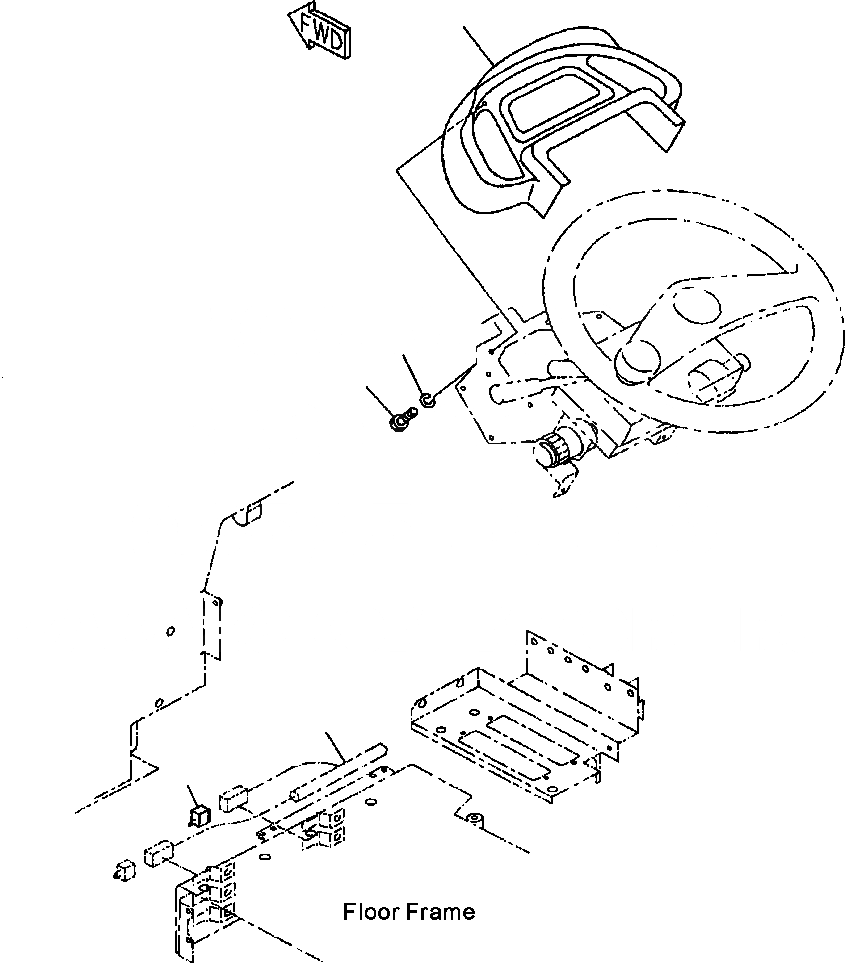

Запчасти Komatsu WA900-3LC K-A ОСНОВН. МОНИТОР КРЕПЛЕНИЕ OPERATORS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

1

MONITOR, MAIN - CONVENTIONAL TRANSMIS SION (SEE FIG. K4220-51A1 )

SN: A50001--UP

-1шт.

|$8

OR

1

-1шт.

|$2

MONITOR, MAIN - AUTO-SHIFT TRANSMISSION (SEE FIG. K4220-51A1 )

SN: A50001--UP

-1шт.

3

-1шт.

2

01220-40612

SCREW

SN: A50001--UP

8шт.

3

01602-20619

WASHER, LOCK

SN: A50001--UP

8шт.

4

425-S33-2290

CONNECTOR, SHORT

SN: A50001--UP

1шт.

5

WIRING HARNESS (SEE FIG. K4210-01A0 )

SN: A50001--UP

-1шт.

|$9

8

-1шт.

|$10

F1 - USE WITH AUTO-SHIFT TRANSMISSION ONLY.

9

-1шт.
