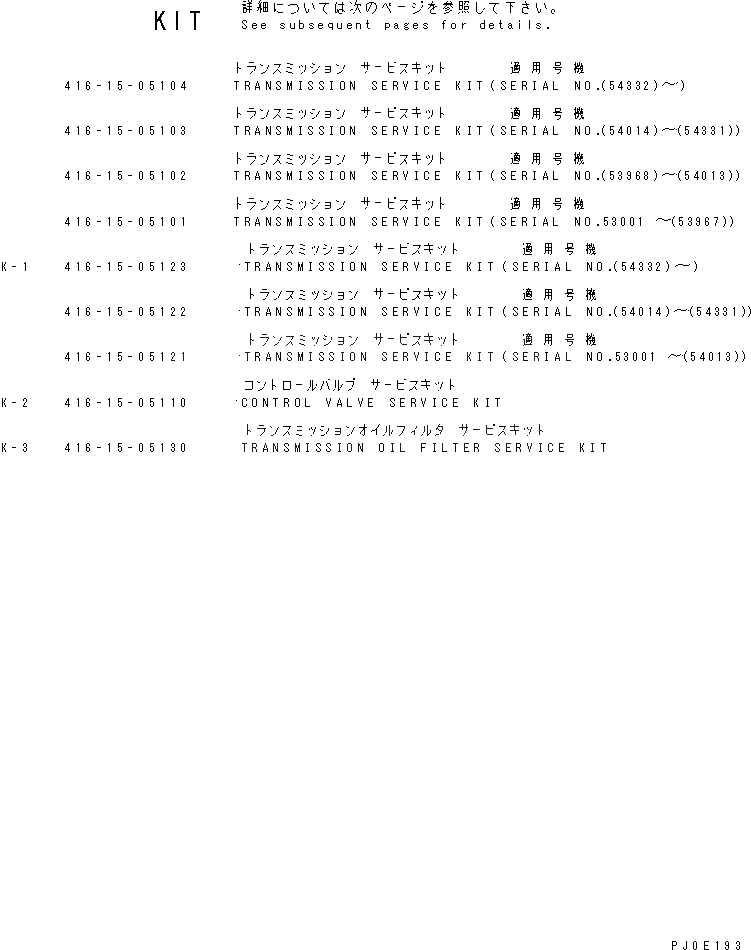

Запчасти Komatsu WR11-3 TRANSMSSION РЕМ. КОМПЛЕКТЫ ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$$1

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|1

416-15-05104

SERVICE KIT

SN: (54332)-UP

1шт.

|1

416-15-05103

SERVICE KIT

SN: (54014)-(54331)

1шт.

|1

416-15-05102

SERVICE KIT

SN: (53968)-(54013)

1шт.

|1

416-15-05101

SERVICE KIT

SN: 53001-(53967)

1шт.

1

416-15-05123

SERVICE KIT

SN: (54332)-UP

1шт.

|1

416-15-05122

SERVICE KIT

SN: (54014)-(54331)

1шт.

|1

416-15-05121

SERVICE KIT

SN: 53001-(54013)

1шт.

|1

07000-02075

O-RING,(F4350-62A0 -13 )

SN: 53001-UP

1шт.

|1

07000-02085

O-RING,(F4350-60A0 -2 )

SN: 53001-UP

1шт.

|1

07000-02085

O-RING,(F4350-61A0 -5 )

SN: 53001-UP

1шт.

|1

07000-02105

O-RING,(F4350-55A0 -12 )

SN: 53001-UP

1шт.

|1

07000-05200

O-RING,(F4350-56A0 -2 )

SN: 53001-UP

1шт.

|1

07000-73028

O-RING,(F4350-61A0 -14 )

SN: 53001-UP

2шт.

|1

07000-73028

O-RING,(F4350-61A0 -18 )

SN: 53001-UP

1шт.

|1

07002-02434

O-RING,(F4350-62A0 -4 )

SN: 53001-UP

1шт.

|1

07002-02434

O-RING,(F4350-62A0 -12 )

SN: 53001-UP

1шт.

|1

07002-03334

O-RING,(F4350-61A0 -27 )

SN: 53001-UP

1шт.

|1

07002-03334

O-RING,(F4350-61A0 -29 )

SN: 53001-UP

1шт.

|1

07002-11023

O-RING,(F4350-61A0 -26B )

SN: (54014)-UP

1шт.

|1

07012-50065

SEAL,(F4350-55A0 -6 )

SN: (54332)-UP

1шт.

|1

07012-50065

SEAL,(F4350-55A0 -7 )

SN: (54332)-UP

1шт.

|1

417-15-13690

SEAL,(F4350-55A0 -6- )

SN: 53001-(54331)

1шт.

|1

417-15-13690

SEAL,(F4350-55A0 -7- )

SN: 53001-(54331)

1шт.

|1

417-15-13790

O-RING,(F4350-55A0 -17 )

SN: 53001-UP

1шт.

|1

417-15-13810

SEAL,(F4350-55A0 -8 )

SN: 53001-UP

1шт.

|1

417-15-13810

SEAL,(F4350-55A0 -9 )

SN: 53001-UP

1шт.

|1

419-15-12121

RING,(F4350-52A0 -19 )

SN: 53001-UP

4шт.

|1

419-15-12121

RING,(F4350-53A0 -21 )

SN: 53001-UP

2шт.

|1

419-15-12121

RING,(F4350-54A0 -23 )

SN: 53001-UP

3шт.

|1

419-15-12190

RING,(F4350-52A0 -10 )

SN: 53001-UP

2шт.

|1

419-15-12210

RING,(F4350-52A0 -11 )

SN: 53001-UP

2шт.

|1

419-15-12210

RING,(F4350-53A0 -11 )

SN: 53001-UP

1шт.

|1

419-15-12210

RING,(F4350-54A0 -10 )

SN: 53001-UP

2шт.

|1

419-15-12580

RING,(F4350-53A0 -10 )

SN: 53001-UP

1шт.

|1

419-15-12580

RING,(F4350-54A0 -9 )

SN: 53001-UP

2шт.

|1

419-15-18131

LIQUID GASKET,(F4350-51A0 -10 )

SN: 53001-UP

1шт.

2

416-15-05110

SERVICE KIT

SN: 53001-UP

1шт.

|2

07002-01023

O-RING,(F4350-58A0 -20 )

SN: 53001-UP

4шт.

|2

07002-02034

O-RING,(F4350-58A0 -25 )

SN: 53001-UP

1шт.

|2

07002-02034

O-RING,(F4350-62A0 -17 )

SN: 53001-UP

1шт.

|2

07002-03034

O-RING,(F4350-59A0 -8 )

SN: 53001-UP

1шт.

|2

07002-03634

O-RING,(F4350-59A0 -15 )

SN: 53001-UP

1шт.

|2

415-15-15151

GASKET,(F4350-58A0 -31 )

SN: 53001-UP

1шт.

|2

415-15-15163

GASKET,(F4350-57A0 -8 )

SN: 53001-UP

1шт.

|2

415-15-15180

GASKET,(F4350-57A0 -3 )

SN: 53001-UP

1шт.

|2

415-15-15220

GASKET,(F4350-59A0 -10 )

SN: 53001-UP

1шт.

|2

415-15-15320

GASKET,(F4350-59A0 -16 )

SN: 53001-UP

1шт.

|2

417-15-15621

SEAL,(F4350-58A0 -23 )

SN: 53001-UP

2шт.

|2

421-06-16510

O-RING,(F4350-57A0 -15 )

SN: 53001-UP

1шт.

|2

421-06-16520

O-RING,(F4350-57A0 -16 )

SN: 53001-UP

1шт.

3

416-15-05130

SERVICE KIT

SN: 53001-(53967)

1шт.

|3

07002-01223

O-RING,(F4350-60A0 -23 )

SN: 53001-(53967)

1шт.

|3

419-15-14860

O-RING,(F4350-60A0 -18 )

SN: 53001-(53967)

1шт.

|3

419-15-14870

GASKET,(F4350-60A0 -20 )

SN: 53001-(53967)

1шт.

|3

424-16-11130

O-RING,(F4350-60A0 -15 )

SN: 53001-(53967)

1шт.
