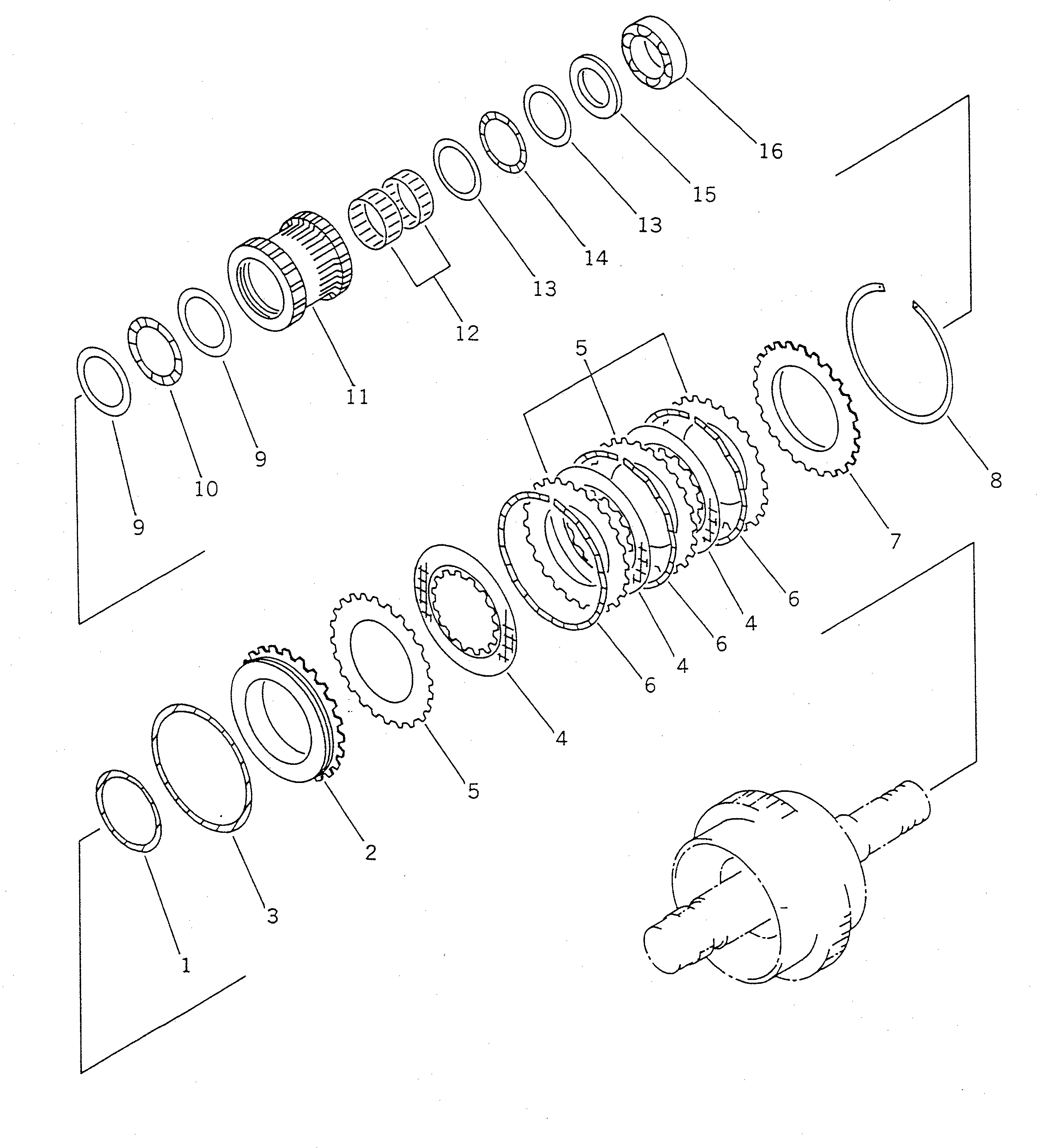

Запчасти Komatsu WR11SS-1 ТРАНСМИССИЯ (3 МУФТА) (7/8) ТРАНСМИССИЯ

|$0

416-15-11082

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|$1

416-15-11080

TRANSMISSION ASS'Y

SN: 29128-29999

1шт.

|$2

416-15-11002

TRANSMISSION ASS'Y

SN: 29005-29127

1шт.

|$3

416-15-13200

CLUTCH ASS'Y,2ND AND 3RD

SN: 29128-UP

1шт.

|$4

416-15-13130

CLUTCH ASS'Y,2ND AND 3RD

SN: 29005-29127

1шт.

1

419-15-12210

RING,SEAL (K1)

SN: 29005-UP

1шт.

2

419-15-13191

PISTON,3RD

SN: 29005-UP

1шт.

3

419-15-12580

RING,SEAL (K1)

SN: 29005-UP

1шт.

4

419-15-12290

DISC

SN: 29005-UP

3шт.

5

419-15-12310

PLATE,SEPARATE

SN: 29005-UP

4шт.

6

56D-15-12710

SPRING,WAVE

SN: 30428-UP

3шт.

6

0

SPRING,WAVE

SN: 29128-30427

3шт.

6

419-15-12132

SPRING,WAVE

SN: 29005-29127

3шт.

7

419-15-12280

PLATE,END

SN: 29005-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 29005-UP

1шт.

9

419-15-12680

WASHER,THRUST

SN: 29005-UP

2шт.

10

419-15-12670

BEARING,THRUST

SN: 29005-UP

1шт.

11

417-15-13231

GEAR, 21 TEETH,3RD

SN: 29128-UP

1шт.

11

417-15-13230

GEAR,3RD

SN: 29005-29127

1шт.

12

419-15-12270

BEARING,NEEDLE

SN: 29005-UP

2шт.

13

419-15-12240

WASHER,THRUST

SN: 29005-UP

2шт.

14

419-15-12250

BEARING,THRUST

SN: 29005-UP

1шт.

15

419-15-12330

SPACER

SN: 29005-UP

1шт.

16

06030-06210

BEARING

SN: 29005-UP

1шт.
