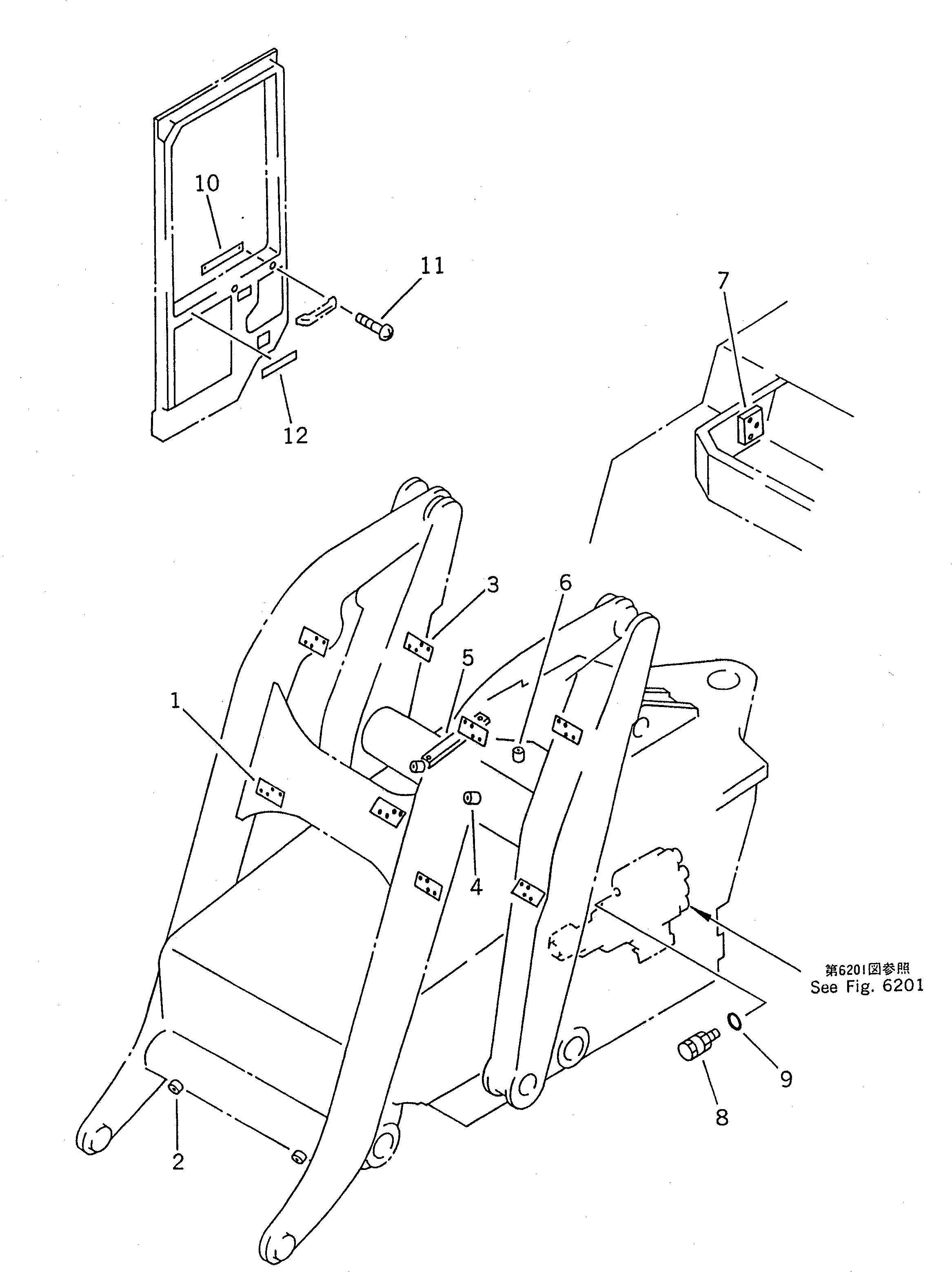

Запчасти Komatsu WR8-1 ГИДРОЛИНИЯ (ДЛЯ ПЕРЕДН. НАВЕСН. ОБОРУД) (/) СПЕЦ. APPLICATION ЧАСТИ

|1

41G-877-1610

ARM,LIFT (MODIFIED PARTS)

SN: 19001-UP

1шт.

1

415-878-1560

PLATE (WELDED)

SN: 19001-UP

4шт.

2

01571-01016

SEAT (WELDED)

SN: 19001-UP

2шт.

|3

41G-877-1620

ARM,REACH (MODIFIED PARTS)

SN: 19001-UP

1шт.

3

415-878-1560

PLATE (WELDED)

SN: 19001-UP

2шт.

4

419-46-12E30

SEAT (WELDED)

SN: 19001-UP

2шт.

|5

41G-877-1650

FRAME,(MODIFIED PARTS)

SN: 19001-UP

1шт.

5

41G-877-1350

SEAT (WELDED)

SN: 19001-UP

1шт.

6

01571-01016

SEAT (WELDED)

SN: 19001-UP

1шт.

|7

41G-877-1631

FRAME,(MODIFIED PARTS)

SN: 19001-UP

1шт.

7

41G-877-1270

PLATE (WELDED)

SN: 19001-UP

1шт.

8

700-20-82000

VALVE ASS'Y,RELIEF

SN: 19001-UP

2шт.

9

07002-02434

O-RING

SN: 19001-UP

2шт.

10

415-878-1240

BRACKET

SN: 19001-UP

1шт.

11

01220-40625

SCREW

SN: 19001-UP

2шт.

12

425-54-15451

SHEET

SN: 19001-UP

1шт.
