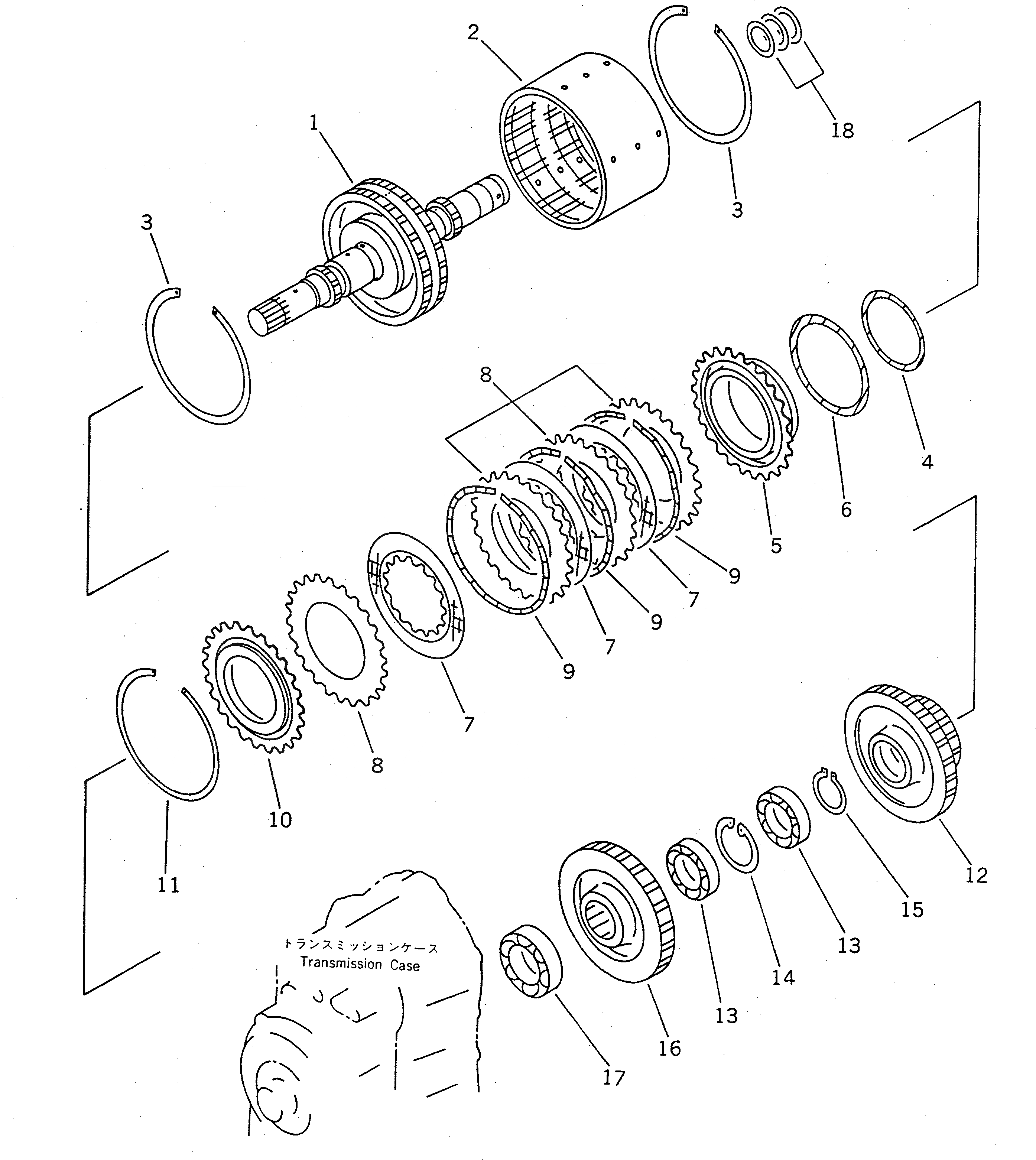

Запчасти Komatsu WR8-1 ТРАНСМИССИЯ (2 МУФТА) (/8) ТРАНСМИССИЯ

|1

415-15-11010

TORQFLOW ASS'Y

SN: 19001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2111 TO 2142.

-1шт.

|1

415-15-12540

CLUTCH ASS'Y,2ND AND 3RD

SN: 19001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2134 AND 2135.

-1шт.

1

415-15-12514

SHAFT ASS'Y

SN: 19037-UP

1шт.

|1

415-15-12513

SHAFT ASS'Y

SN: 19001-19036

1шт.

2

415-15-12640

HOUSING

SN: 19001-UP

1шт.

3

419-15-12140

RING,SNAP

SN: 19001-UP

2шт.

4

415-15-12370

RING,SEAL

SN: 19001-UP

1шт.

5

415-15-12712

PISTON

SN: 19001-UP

1шт.

6

415-15-12750

RING,RING

SN: 19001-UP

1шт.

7

419-15-12910

DISC

SN: 19001-UP

3шт.

8

419-15-12310

PLATE

SN: 19001-UP

4шт.

9

419-15-12133

SPRING,WAVE

SN: 19001-UP

3шт.

10

419-15-12281

PLATE,END

SN: 19001-UP

1шт.

11

419-15-12140

RING,SNAP

SN: 19001-UP

1шт.

12

415-15-12851

GEAR¤ 44 TEETH,2ND

SN: 19001-UP

1шт.

13

06030-06010

BEARING

SN: 19001-UP

2шт.

14

04065-08025

RING,SNAP

SN: 19001-UP

1шт.

15

04064-05020

RING,SNAP

SN: 19001-UP

1шт.

16

415-15-12880

GEAR

SN: 19001-UP

1шт.

17

06030-06308

BEARING

SN: 19001-UP

1шт.

18

7720-50-2710

RING,RING

SN: 19001-UP

3шт.
