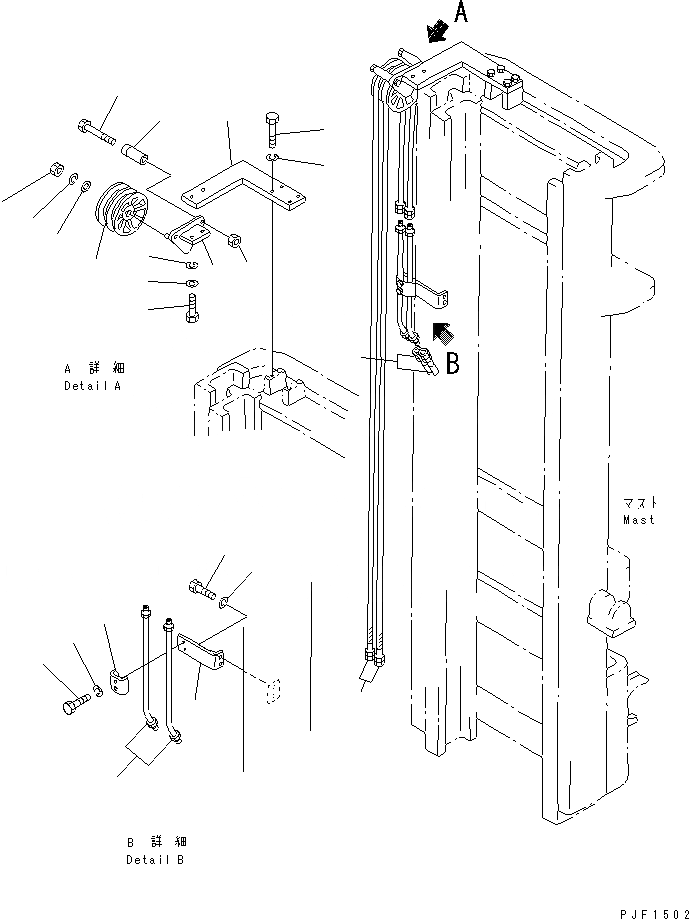

Запчасти Komatsu FG30H-14 МАЧТА ТРУБЫ (ДЛЯ 5-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН НАВЕСН. ОБОРУД) (OUTER ШЛАНГИ ТИП) (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

45B-2MS-3130

PLATE

SN: 550001-UP

1шт.

2

01010-81035

BOLT

SN: 550001-UP

4шт.

3

01602-21030

WASHER,SPRING

SN: 550001-UP

4шт.

4

45B-2MS-4140

BRACKET

SN: 550001-UP

1шт.

5

01010-81035

BOLT

SN: 550001-UP

2шт.

6

01602-21030

WASHER,SPRING

SN: 550001-UP

2шт.

7

01640-21016

WASHER

SN: 550001-UP

2шт.

8

45B-2MS-3160

PIPE

SN: 550001-UP

2шт.

9

01010-81090

BOLT

SN: 550001-UP

2шт.

10

01580-11008

NUT

SN: 550001-UP

2шт.

11

01580-11210

NUT

SN: 550001-UP

1шт.

12

01640-21223

WASHER

SN: 550001-UP

1шт.

13

01602-21236

WASHER,SPRING

SN: 550001-UP

1шт.

14

07123-00306

HOSE

SN: 550001-UP

2шт.

15

45C-2MA-1200

PULLEY

SN: 550001-UP

1шт.

16

37B-ZES-2030

PIPE,(FOR 3.0M AND 3.3M MAST)

SN: 550001-UP

2шт.

|$39

37B-ZES-2040

PIPE,(FOR 3.5M AND 3.7M MAST)

SN: 550001-UP

2шт.

|$40

37B-ZES-2020

PIPE,(FOR 4.0M AND 4.3M MAST)

SN: 550001-UP

2шт.

|$41

37B-ZES-2070

PIPE,(FOR 4.5M TO 5.0M MAST)

SN: 550001-UP

2шт.

|$42

37B-ZES-2090

PIPE,(FOR 5.5M AND 6.0M MAST)

SN: 550001-UP

2шт.

17

07123-00320

HOSE,(FOR 3.0M MAST)

SN: 550001-UP

2шт.

|$44

07123-00323

HOSE,(FOR 3.3M MAST)

SN: 550001-UP

2шт.

|$45

07123-00324

HOSE,(FOR 3.5M MAST)

SN: 550001-UP

2шт.

|$46

07123-00326

HOSE,(FOR 3.7M MAST)

SN: 550001-UP

2шт.

|$47

07123-00329

HOSE,(FOR 4.0M MAST)

SN: 550001-UP

2шт.

|$48

07123-00332

HOSE,(FOR 4.3M MAST)

SN: 550001-UP

2шт.

|$49

07123-00328

HOSE,(FOR 4.5M MAST)

SN: 550001-UP

2шт.

|$50

07123-00331

HOSE,(FOR 4.7M MAST)

SN: 550001-UP

2шт.

|$51

07123-00334

HOSE,(FOR 5.0M MAST)

SN: 550001-UP

2шт.

|$52

07123-00336

HOSE,(FOR 5.5M MAST)

SN: 550001-UP

2шт.

|$53

07123-00341

HOSE,(FOR 6.0M MAST)

SN: 550001-UP

2шт.

18

45B-2MS-4150

BRACKET,(FOR 3.0M TO 4.3M MAST)

SN: 550001-UP

1шт.

|$55

45B-2MS-4150

BRACKET,(FOR 4.5M TO 6.0M MAST)

SN: 550001-UP

2шт.

19

01010-80820

BOLT,(FOR 3.0M TO 4.3M MAST)

SN: 550001-UP

2шт.

|$57

01010-80820

BOLT,(FOR 4.5M TO 6.0M MAST)

SN: 550001-UP

4шт.

20

01602-20825

WASHER,SPRING (FOR 3.0M TO 4.3M MAST)

SN: 550001-UP

2шт.

|$59

01602-20825

WASHER,SPRING (FOR 4.5M TO 6.0M MAST)

SN: 550001-UP

4шт.

21

45B-5MA-2040

CLIP,(FOR 3.0M TO 4.3M MAST)

SN: 550001-UP

1шт.

|$61

45B-5MA-2040

CLIP,(FOR 4.5M TO 6.0M MAST)

SN: 550001-UP

2шт.

22

01010-80830

BOLT,(FOR 3.0M TO 4.3M MAST)

SN: 550001-UP

2шт.

|$63

01010-80830

BOLT,(FOR 4.5M TO 6.0M MAST)

SN: 550001-UP

4шт.

23

01602-20825

WASHER,SPRING (FOR 3.0M TO 4.3M MAST)

SN: 550001-UP

2шт.

|$65

01602-20825

WASHER,SPRING (FOR 4.5M TO 6.0M MAST)

SN: 550001-UP

4шт.
