(10.001.02[02]) - CYLINDER BLOCK & RELATED PARTS - GASKET REVOLVING SHAFT (504045977)

Запчасти Case F3AE0684S E913 (10.001.02[02]) - CYLINDER BLOCK & RELATED PARTS - GASKET REVOLVING SHAFT (504045977) (10) - ENGINE

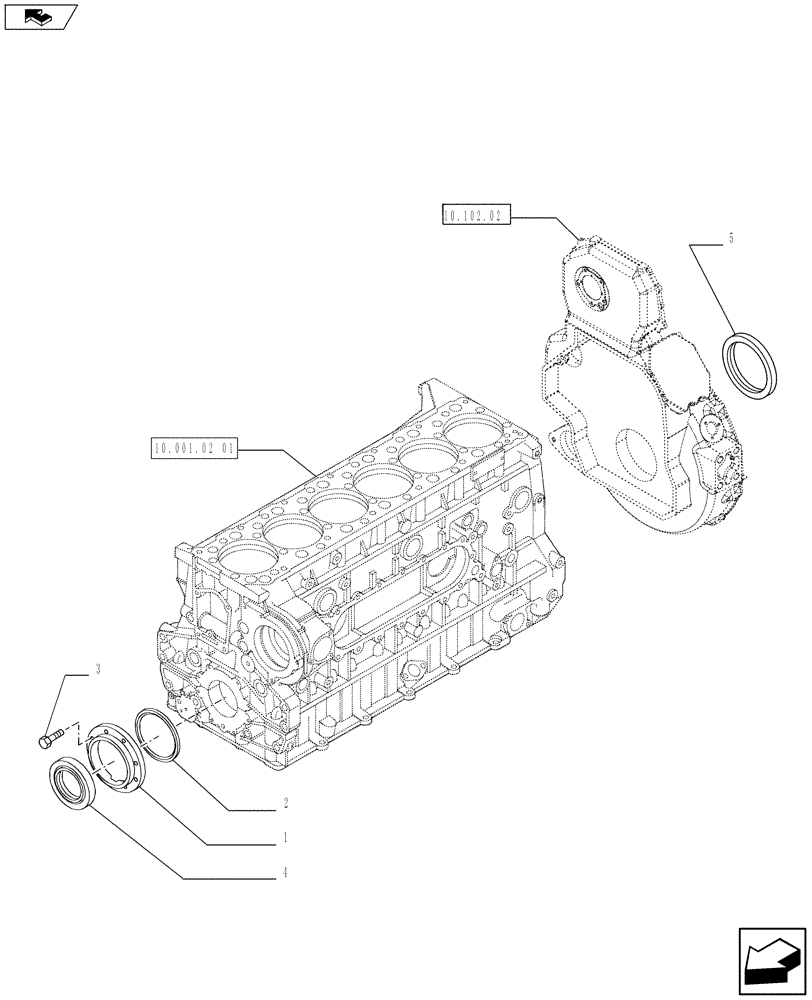

Схема запчастей Case F3AE0684S E913 - (10.001.02[02]) - CYLINDER BLOCK & RELATED PARTS - GASKET REVOLVING SHAFT (504045977) (10) - ENGINE
1
3
home
10.001.02 01
2
5
4
10.102.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

500304671

COVER

1шт.

2

14467281

O-RING,0.139" Thk x 5.484" ID, -254, Cl 7, 75 Duro

D = 136.1 x 3.53 mm

1шт.

3

16586224

SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8

8шт.

4

40102683

GASKET

1шт.

5

40102693

GASKET

1шт.

Выбрано товаров: 5
